What Is a Swing Gate?
What Is a Sliding Gate?
Cost Comparison: Sliding Gate vs Swing Gate
Maintenance & Reliability: Living With Your Gate Day to Day
Spatial, Structural, and Site Terrain Requirements
Automation, Safety Mechanisms, and Security Features
Engineering Decision Matrix: How to Choose the Right Gate System
A swing gate is a perimeter access barrier hinged on vertical support posts that rotates inward or outward through an arc to open and close the entrance clearance.
The mechanical structure of a swing gate relies on rotational movement anchored by heavy-duty post hinges. Available in single-leaf or double-leaf configurations, swing gates swing open like traditional doors. The structural integrity of a swing gate depends heavily on the mounting posts and horizontal load distribution across the hinges. Because the entire mass of the gate panel is suspended in mid-air during operation, cantilevered leverage places substantial rotational torque on the supporting gate pillars, requiring reinforced steel or deep-poured concrete footings.
In municipal, commercial, and industrial facilities, swing gates are often chosen for sites where underground utility lines or uneven terrain make ground excavations impractical. Unlike automated systems that require a continuous sliding gate track along the driveway threshold, swing gates keep the ground plane open between support posts. However, this architectural design demands a clear radial sweep area free from vehicular obstruction, snow accumulation, or rising ground elevation. If the driveway slopes upward into the property, an inward-swinging gate leaf will physically bind against the rising grade unless custom rising hinges or outward-opening leaf geometries are specified.
From an engineering perspective, swing gates experience significant wind resistance during opening and closing cycles. Because the gate panel acts as a solid sail, high winds create substantial torque against the automatic actuator arms. To mitigate structural stress, European market preferences favor open-slat or tubular leaf construction that allows air displacement, minimizing motor gear strain. Despite their structural simplicity and low initial hardware costs, swing gates require large spatial clearances that reduce usable parking or storage space inside the perimeter boundary.
Specification / Component | Single-Leaf Swing Gate | Double-Leaf Swing Gate |
Hinge Load Dynamics | High cantilevered bending moment on single post | Distributed load across two independent posts |
Operational Arc Clearance | Full width of entrance (e.g., 4m clearance radius) | Half width of entrance per leaf (e.g., 2m clearance radius) |
Driveway Slope Compatibility | Requires level ground or specialized rising hinges | Limited slope handling; outward opening option |
Automation Actuator Type | Linear ram or articulated arm motor | Dual linear rams or dual underground actuators |
Foundation Requirements | Deep concrete foundation for single support post | Dual concrete footings for both gate posts |
Hinge Inspection and Alignment Protocol: Regularly monitor hinge grease retention and structural plumbness on swing gate posts every six months to prevent gate leaf sag and operational binding against motor actuators.
A sliding gate is a horizontal perimeter gate that moves parallel to a fence line or wall, guided along a high-strength sliding gate track or cantilever roller system.
The operational framework of a ground-tracked sliding gate relies on direct linear travel along an embedded or surface-anchored sliding gate track. Steel or nylon v-groove wheels attached to the lower structural frame roll directly along the sliding gate track profile, distributing the full deadweight of the gate leaf continuously to the ground slab. By transferring structural load directly onto the concrete footing beneath the sliding gate track rather than suspending it from vertical posts, sliding gates can easily span wide industrial openings up to 12 meters or more with minimal panel deflection.
In high-traffic industrial logistics hubs and commercial facility perimeters, sliding gate track installations are widely recognized for their compact lateral footprint. Because the gate leaf slides parallel to the boundary wall, no internal or external sweep clearance is consumed. Vehicle drivers can pull directly up to the gate line without risking impact from an opening leaf. Engineering precision in the lower sliding gate track alignment is critical; high-grade galvanized sliding gate track rails ensure low rolling friction, preventing motor overload and ensuring smooth travel even under heavy continuous usage cycles.
For modern facility designs requiring robust physical resistance, selecting high-grade galvanized sliding gate track hardware systems guarantees long-term protection against corrosion, severe axle loads, and environmental degradation. The structural durability of the sliding gate track hardware directly governs the lifespan of lower roller bearings and gear rack engagement. European engineering standards emphasize precision-milled sliding gate track profiles that seamlessly integrate with anchor bolts, delivering smooth travel dynamics for high-frequency access points.
Key operational and structural advantages of sliding gate systems include:
Maximum Space Efficiency: Linear lateral movement along the sliding gate track preserves total usable driveway depth inside and outside the property line.
Superior Structural Stability: Downward load distribution along the sliding gate track eliminates post sagging and panel droop across wide spans.
High Resistance to Wind Loads: Because sliding gate leaf movement is perpendicular to wind forces and held captive by top guide rollers and lower sliding gate track channels, wind forces cannot blow the gate off its trajectory.

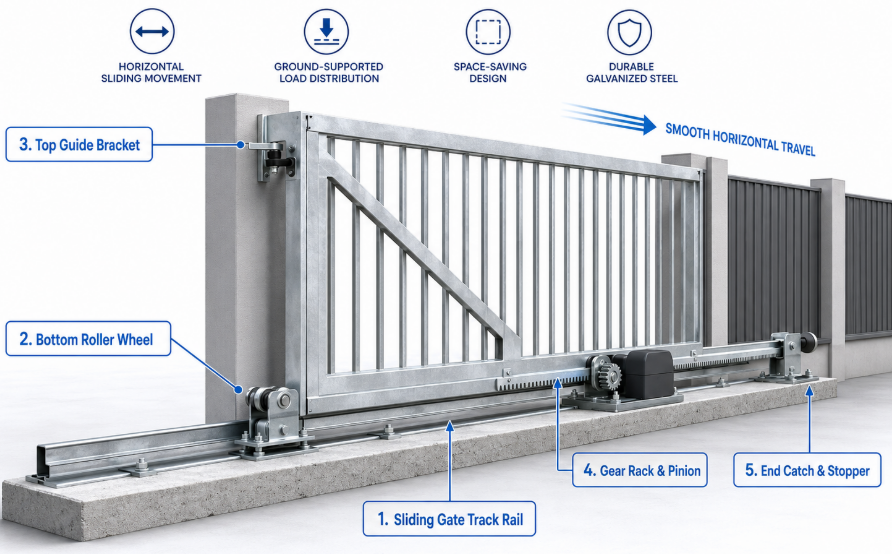

Component Layer | Technical Specification | Function in System |
Sliding Gate Track Rail | Hot-dip galvanized steel v-profile or round profile | Provides continuous smooth linear guide surface for bottom wheels |
Bottom Rollers / Wheels | Dual-bearing steel / nylon wheels with v-groove | Carries vertical load along the sliding gate track surface |
Top Guide Bracket | Four-roller nylon guide assembly with mounting plate | Prevents lateral tipping and maintains vertical alignment |
Drive Rack & Pinion | M4 steel or nylon-reinforced gear rack | Transfers rotational motor torque into linear gate movement |
End Catch & Stopper | Heavy-duty rubber-buffered steel catch box | Absorbs kinetic impact and secures leaf in fully closed position |
Sliding Gate Track Debris Management: Ensure the running surface of the sliding gate track remains free of gravel, ice, and organic debris to prevent wheel displacement and excessive strain on the drive motor pinion.
Sliding gate installations generally incur higher initial civil and hardware costs due to ground slab preparation and sliding gate track anchoring, whereas swing gates have lower upfront equipment costs but higher long-term mechanical wear risks.
When evaluating the total cost of ownership between perimeter gate systems, procurement managers must distinguish between initial capital expenditure and long-term operational maintenance. A swing gate system requires basic vertical post excavations and simplified mounting hardware. However, dual-leaf swing configurations require two separate motor actuators, dual control wiring runs, and precise mechanical synchronization. Over time, hinge fatigue and post movement caused by soil settling can lead to costly realignments and structural repairs.
Conversely, a sliding gate system requires a reinforced concrete footing spanning double the driveway opening width to anchor the continuous sliding gate track and rear travel zone. Initial civil construction costs for trenching, rebar installation, and concrete pouring beneath the sliding gate track raise initial installation budgets. However, sliding gate systems utilize a single high-torque gear motor, reducing drive system complexity. Utilizing robust heavy-duty galvanized sliding gate track rails significantly minimizes long-term track deformation, wheel replacement costs, and motor burnout risks.
From an international export and commercial engineering perspective, European B2B buyers prioritize longevity over low initial material cost. Actual customer inquiry data shows that clients focus heavily on anti-corrosion finishes for the sliding gate track, load bearing capacities per axle, and ease of sliding gate track replacement if concrete foundation shifts occur. Choosing premium galvanized sliding gate track hardware prevents early rust formation, ensuring that operational efficiency remains intact over tens of thousands of open-close cycles.
Cost Element | Swing Gate System | Ground-Tracked Sliding Gate System |
Civil Concrete Work | Lower: Two post footings only | Higher: Full-length continuous pad for sliding gate track |
Automation Equipment | Higher for double leaf (2 motors required) | Lower (1 rack-driven sliding motor required) |
Hardware Component Costs | Moderate: Hinges, stops, latch assembly | Moderate-High: Sliding gate track, wheel sets, guide rollers |
Installation Labor Hours | Lower overall field labor time | Higher due to precision sliding gate track leveling |
10-Year Ownership Cost | Moderate-High (hinge wear, realignment) | Low (minimal wear when sliding gate track is maintained) |
Capital Budget Optimization Tip: Investing in pre-galvanized high-density steel for the sliding gate track during initial civil installation eliminates recurrent track replacement and re-trenching expenses over a 15-year operational lifecycle.
Sliding gates operating along a clean sliding gate track offer high daily mechanical reliability under continuous heavy usage, whereas swing gates require less ground track sweeping but demand frequent hinge lubrication and wind-load alignment checks.
Daily operational reliability depends on how environmental factors interact with the mechanical guide components of the gate. For swing gates, mechanical fatigue focuses almost entirely on the hinge pins, mounting brackets, and motor arm pivot points. In regions subject to strong lateral wind gusts, swing gate leaves experience intense fluttering, which transfers dynamic mechanical shock directly into the motor gearboxes. Regular inspection of post anchorage bolts and pivot lubrication is essential to prevent binding or structural failure.
For sliding gates, daily reliability is tied directly to the physical condition of the sliding gate track profile. A well-maintained sliding gate track ensures near-frictionless travel for heavy steel leaves weighing upwards of 1000 kg. However, because the sliding gate track is situated flush or slightly proud of the driveway surface, leaves, sand, gravel, and snow can collect in the track groove. Automated sweepers or built-in wheel brush accessories on the sliding gate panel help clear minor obstacles ahead of the roller wheels during travel.
In cold climate industrial applications across Northern Europe, frost heave can shift surface paving stones and disturb ground level precision. Why do engineers design modern sliding gate systems with adjustable roller height bolts and modular sliding gate track anchors? Because field adjustability allows maintenance teams to quickly recalibrate the gap between the gate frame and the sliding gate track without cutting or re-welding steel structural members. Utilizing certified precision-engineered sliding gate track profiles allows smooth roller wheel engagement and prevents vibration fatigue across drive electronics.
Maintenance Category | Swing Gate Checklist | Sliding Gate Track Checklist |
Weekly Tasks | Clear ground clearance path of visual debris | Sweep running surface of sliding gate track rail |
Monthly Maintenance | Grease hinge nipples; test arm limit switches | Inspect sliding gate track mounting bolts and clean gear rack |
Semi-Annual Inspection | Check post plumbness; test mechanical emergency release | Check sliding gate track level, inspect wheel bearings for wear |
Annual Overhaul | Verify motor capacitor values; inspect structural welds | Re-torque sliding gate track anchors; test safety edge sensor stops |
Winter Maintenance Protocol: Apply non-corrosive de-icing agents along the sliding gate track channel during winter freezing conditions to prevent ice buildup inside the wheel v-grooves.
Site spatial geometry and ground slope dictate gate feasibility, where sliding gates require linear lateral space along the perimeter line equal to the opening width plus counterweight clearance, while swing gates require a deep radial footprint inside the property.
Site layout considerations represent the first strict engineering constraint when selecting perimeter hardware. A standard 5-meter commercial driveway opening using a double-swing gate configuration requires at least 2.5 meters of inward radial clearance free of all parked vehicles, landscaping, or rising elevation. If a site features a steep upward slope leading into the garage or loading dock, inward-swinging gate panels will physically collide with the pavement. In such topographies, installing a ground sliding gate system with a level-poured concrete strip for the sliding gate track is often the only structurally viable solution.
However, sliding gate systems require adequate horizontal run-out space along the adjacent fence or wall line. For a 5-meter driveway opening, the total linear lateral distance required to fully retract the sliding gate leaf along the sliding gate track is approximately 5.8 to 6.2 meters, accounting for the rear motor drive tail and overhang brackets. If property boundaries or perpendicular structures block lateral movement along the fence line, a single sliding gate cannot be installed unless a dual bi-parting sliding gate track arrangement is implemented.
Structural stability under high wind loading also favors sliding gate configurations. Because a sliding gate panel is continuously retained at the bottom by the sliding gate track and at the top by heavy-duty guide roller brackets, horizontal wind forces are effectively transferred directly into ground concrete slabs and structural fence posts. Swing gate leaves, by contrast, act as unanchored cantilevered panels when moving, transferring extreme twisting forces to the operator arm during stormy weather.
Spatial Parameter | Swing Gate Requirement | Sliding Gate Track Requirement |
Inward / Outward Driveway Depth | Requires clearance equal to leaf width (2.5m - 5m) | Zero clearance required inside driveway depth |
Lateral Fence Run-out Distance | Zero lateral fence space required | Requires opening width + motor tail (e.g., 6m total) |
Ground Slope Tolerance | Poor; requires level radial swing area | Excellent; requires level horizontal sliding gate track strip |
Wind Resistance Capacity | Moderate; limited by actuator holding torque | High; structural top guide rollers & sliding gate track lock leaf |
Topographical Leveling Guideline: Always pour a level, continuous reinforced concrete grade beam beneath the entire sliding gate track travel length to prevent track dipping and binding during heavy seasonal freeze-thaw cycles.
Sliding gate track systems offer superior physical anti-breach security due to rigid horizontal entrapment, whereas swing gate automation relies heavily on hydraulic holding valves or mechanical magnetic locks.
Perimeter access control relies on physical robustness combined with modern automated motor integration. Ground-tracked sliding gates inherent structural resistance to forced entry. When closed, the leading edge of the sliding gate leaf nests tightly into a heavy-duty steel receiver catch, while the entire length of the lower frame rests secured within the sliding gate track channel. Intruders cannot easily force the gate panel inward or leverage it open with vehicle pressure because horizontal forces are resisted by the continuous concrete-anchored sliding gate track and upper guide brackets.
In contrast, automated swing gates depend on the locking force of linear actuator arms or solenoid locks installed at the central meeting stiles. Under severe force, swing gate leaves can experience leverage deflection at the center joint unless electromagnetic shear locks or floor-mounted drop bolts are installed. For high-security commercial premises, sliding gates equipped with a heavy-duty galvanized sliding gate track system provide an uninterrupted anti-lift barrier that prevents manual pry attacks.
From an automation safety perspective, both gate types must comply with international safety standards regarding anti-crushing protection. Motor operators utilize optical safety photocells, active safety edges, and adjustable current-sensing obstruction detection. Because sliding gates move along a predictable, narrow linear corridor defined by the sliding gate track, safety light curtains and infrared safety beams are extremely easy to align, providing comprehensive entrapment protection across the entire perimeter opening.
Security & Safety Feature | Swing Gate Implementation | Sliding Gate Track Implementation |
Forced Entry / Pry Resistance | Relies on center mechanical latch or electro-lock | High structural lockup within receiver catch & sliding gate track |
Anti-Lift Protection | Not applicable (hinged on vertical axis) | Top guide rollers and captive sliding gate track hold panel down |
Obstruction Detection Zone | Wide 90-degree radial arc coverage required | Linear 1D beam zone parallel to sliding gate track |
Manual Emergency Release | Key-operated disengage key on actuator body | Rotary release key on sliding motor drive gear |
Safety Edge Installation Tip: Fit dual-channel rubber safety edges on both leading and trailing ends of a sliding gate leaf moving along a sliding gate track to instantly reverse motor direction upon contact with any physical obstacle.
Selecting the ideal gate architecture requires evaluating available lateral space, driveway gradient, opening cycle frequency, and budget constraints to determine whether a swing gate or a sliding gate track installation matches project requirements.
To systematically evaluate which gate type is right for a specific industrial, commercial, or residential project, engineers and facility operators should follow a step-by-step physical assessment protocol. The primary decision point begins with site geometry: if internal parking depth is limited or the driveway slopes upward from the property line, a ground sliding gate system using a galvanized sliding gate track is the clear mechanical choice.
The secondary evaluation criteria focuses on operational duty cycles and gate leaf mass. For heavy industrial access points where gates operate hundreds of times daily, transferring deadweight directly to the ground slab via a sliding gate track eliminates cantilever fatigue on vertical support pillars. European market trends show a strong preference for modular sliding gate track hardware kits that include pre-drilled anchor holes, heavy-duty v-groove roller wheels, and match-milled gear racks, allowing rapid field installation with minimal maintenance downtime.
By contrasting key site variables against performance traits, project specifiers can select the most durable perimeter gate system:
Choose a swing gate system when: Driveway slope is flat, lateral wall space along the fence line is restricted, opening widths are moderate, and initial capital installation budgets are constrained.
Choose a ground sliding gate system when: Lateral fence space is available, driveway depth must be fully preserved, severe wind loads exist, high physical anti-breach security is needed, and long-term mechanical reliability along a sliding gate track is required.
Site Constraint / Criterion | Recommended Gate Architecture | Key Selection Rationale |
Short Driveway Depth (< 5m) | Ground-Tracked Sliding Gate | Saves 100% of internal parking space along sliding gate track |
Zero Lateral Retraction Clearance | Double Swing Gate | No lateral wall space needed along boundary line |
Upward Incline into Property | Ground-Tracked Sliding Gate | Avoids gate leaf binding against rising driveway elevation |
High Wind Exposure Area | Ground-Tracked Sliding Gate | Leaf continuously captured by top guides and lower sliding gate track |
Heavy Industrial Duty Cycle | Ground-Tracked Sliding Gate | Direct wheel load transfer onto robust sliding gate track footing |
Final Engineering Check: Before finalizing project purchasing specifications, measure the precise horizontal level across the entrance span and verify that high-grade galvanized sliding gate track hardware is selected to match total calculated leaf weight.
