Extra Barn Door Roller Sets: When to Add or Replace Them

Determining when to add or replace extra barn door roller sets depends primarily on structural panel expansions, bearing surface degradation, elevated dynamic load requirements, and unaligned track kinematics. Implementing a secondary hanging door roller assembly is required when adding multi-panel bypass configurations, while immediate component replacement is mandatory when flat-spotting, race contamination, or structural fatigue compromises smooth linear motion and load distribution.

Table of Contents

1. When you actually need extra roller sets

   • 1.1 Adding more door panels to an existing track

   • 1.2 Replacing flat-spotted rollers

2. Available roller styles

3. What extra roller sets don't fix

4. Not sure if extra rollers solve your problem?

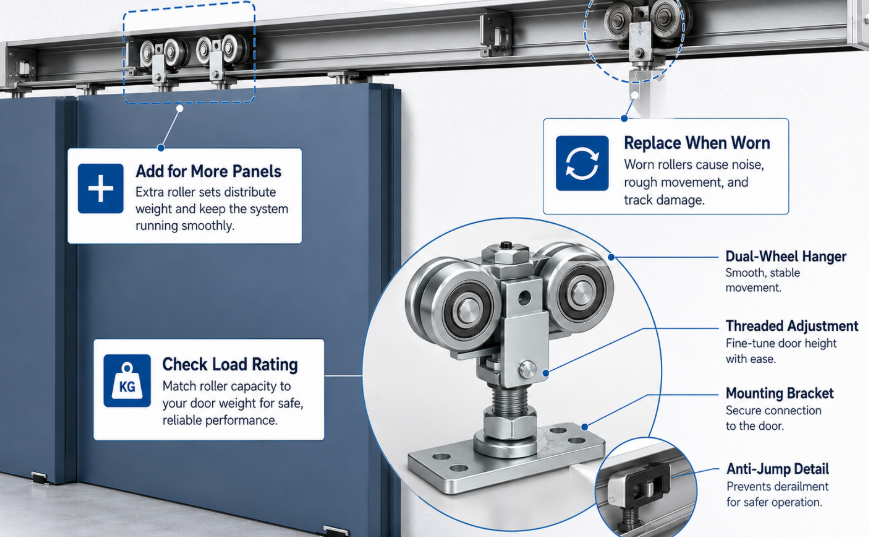

When you actually need extra roller sets

Integrating extra roller sets becomes mechanically necessary when expanding system door count, rectifying geometric wheel flat-spotting, or rebalancing dynamic weight distribution across overhead track channels.

In high-duty commercial and industrial sliding door systems, the top hanging door roller assembly serves as the foundational bearing element responsible for translating rotational force into linear motion. When structural facility layouts undergo operational modifications, such as converting a single wide portal into a multi-leaf partition, additional hanging door roller units must be installed to support each new independent panel. Operating a top hanging door roller beyond its rated load threshold leads to accelerated mechanical wear, increased pulling force requirements, and potential structural fatigue along the overhead track support. Proper hardware calculation requires matching the total dynamic mass of all suspended panels against the rated radial capacity of each individual hanging door roller hanger.

Furthermore, component degradation over continuous duty cycles creates distinct physical indicators indicating that replacement roller sets are necessary. Polymer wheel surfaces subjected to static load resting over extended periods can develop permanent indentations known as flat-spots. When an operator attempts to actuate a door equipped with flat-spotted components, the top hanging door roller produces noticeable mechanical vibration, periodic noise, and uneven friction spikes along the running track. Industrial facility managers frequently source replacement hanging door roller sets to restore low-friction operation, prevent track surface scoring, and uphold workplace safety compliance standards.

European architectural specifications and industrial engineering standards emphasize preventive maintenance cycles for overhead hardware. European clients consistently prioritize full-steel roller housings equipped with double-sealed ball bearings over unsealed nylon alternatives. Understanding when to add secondary roller sets versus when to complete a full hardware replacement prevents costly structural downtime and protects overhead mounting structures from unbalanced torque loads. Evaluating hanging door roller performance involves inspecting race play, checking wheel concentricity, and verifying hanger alignment relative to the panel center of gravity.

For demanding commercial applications requiring maximum load carrying capability and corrosion resistance, facility engineers routinely specify a heavy duty galvanized steel top hanging sliding door roller wheel to sustain high operational cycles without structural deformation.

Maintenance Protocol for Overhead Rollers: Inspect roller bearing clearances bi-annually using feeler gauges to verify radial play does not exceed 0.25 mm. Clean enclosed box tracks using non-solvent degreasers to remove airborne particulates, and reapply high-tack synthetic grease to open bearing races if non-sealed units are present.

Adding more door panels to an existing track

Adding additional door panels onto an existing overhead track infrastructure requires installing dedicated top hanging door roller pairs for each panel while verifying that the total static load remains within the track profile shear limit.

Converting a standard single-panel sliding door layout into a bi-parting, bypass, or multi-panel telescoping system is an effective spatial optimization strategy in industrial warehouses and modern commercial facilities. However, hanging multiple door leaves on a single track structure fundamentally alters the distribution of static and dynamic mechanical stresses. Each supplementary panel requires its own independent top hanging door roller hangers, positioned precisely at the primary stress points defined by the panel width and weight distribution. Installing an additional leaf without adjusting hanging door roller positioning can induce panel canting, causing lower guide channels to bind and placing asymmetric strain on the overhead fasteners.

When selecting additional hardware sets for multi-panel retrofits, hardware compatibility with the existing track geometry is paramount. Track internal dimensions, channel lip tolerances, and anti-jump pin clearances must match the newly introduced top hanging door roller dimension profile. Engineering analysis reveals that European industrial buyers strongly prefer modular hanging door roller designs featuring vertical adjustment bolts with thread-locking nylon inserts. This design feature enables precise height leveling across multi-panel installations, ensuring that adjacent panel edges meet flush without light gaps or mechanical interference during linear travel.

Furthermore, dynamic drag forces accumulate with each additional hanging door roller installed on the system. To maintain smooth manual or automated actuation, each added top hanging door roller wheel must incorporate precision ground ball bearings with minimal rolling resistance. In multi-panel bypass configurations, offsetting the hanger brackets prevents adjacent roller housings from contacting each other during panel stacking. Facilities upgrading to multi-leaf configurations must perform an structural anchor audit to confirm that header wall studs or steel beam supports can withstand the combined concentrated loads of multiple suspended panels.

1. Assess header track structural rating before purchasing additional hanging door roller sets.

2. Calculate individual panel weight including core material, framing, glass inserts, and lower guide brackets.

3. Verify that the combined dynamic weight of all panels does not exceed 75 percent of maximum track deflection limits.

4. Install anti-jump blocks on every newly added top hanging door roller assembly to prevent derailment during fast movement.

Replacing flat-spotted rollers

Flat-spotted rollers develop when sustained static load, elevated ambient temperatures, or poor polymer quality cause localized permanent deformation on the wheel running surface, requiring full roller assembly replacement.

Flat-spotting represents one of the primary mechanical failure modes in overhead sliding door hardware utilizing thermoplastic or elastomer-coated wheels. When a heavy sliding door remains stationary in a fixed position for extended periods, continuous compressive stress acts upon the narrow point of contact between the top hanging door roller wheel tread and the lower track flange. If the material yield strength is exceeded, or if cold flow creep occurs within low-grade nylon formulations, a permanent flat plane forms on the cylindrical circumference. When the door is subsequently actuated, this flat area produces a rhythmic thumping noise and severe cyclical mechanical vibration.

Replacing a flat-spotted top hanging door roller is critical not only for noise reduction, but also to protect adjacent structural components from secondary fatigue failure. The repetitive impulse forces generated by a flat-spotted hanging door roller as it rotates pass directly into the hanger bracket, mounting studs, and track wall anchors. Over time, these dynamic vibrations can back out structural fasteners, damage internal bearing races, and loosen overhead wall supports. Sourcing a high-capacity replacement top hanging door roller manufactured from high-density POM (polyoxymethylene) or solid galvanized steel completely eliminates the susceptibility to permanent static creep.

Industrial clients frequently inquire why standard rollers develop flat spots prematurely while heavy-duty alternatives do not. The key engineering distinction lies in the material hardness, radial wall thickness, and interior structural webbing of the wheel casing. Premium top hanging door roller designs feature reinforced rim geometries and high-grade bearing inserts that distribute compressive stress evenly across a wider contact arc. When replacing compromised hardware, maintenance technicians should always replace top hanging door rollers in matched pairs to ensure uniform riding height, balanced wear rates, and synchronized rolling resistance along the entire track length.

1. Park the sliding panel on temporary support blocks to relieve dynamic weight from the overhead track.

2. Disengage vertical adjustment locking nuts on the damaged top hanging door roller assembly.

3. Slide the compromised hanging door roller hanger out through the end-of-track maintenance slot.

4. Insert the new high-capacity top hanging door roller set and torque all fastening hardware to specified values.

Available roller styles

Selecting the optimal roller style involves matching structural wheel geometry, bearing housing material, and anti-friction coatings with the specific load requirements and atmospheric conditions of the installation environment.

The global market for sliding hardware offers several distinct top hanging door roller configurations tailored to specialized architectural and industrial performance demands. Understanding the structural differences between these styles enables project specifiers to make informed decisions regarding longevity, maintenance frequency, and motion smoothness. Top hanging door roller options generally fall into three structural categories: steel-core nylon rimmed rollers, fully forged galvanized steel wheels, and multi-wheel articulated carriage assemblies. Each design addresses specific trade-offs between noise suppression, ultimate weight capacity, and environmental corrosion resistance.

For standard architectural applications such as interior office dividers and commercial timber doors, nylon-rimmed top hanging door roller designs are widely specified due to their silent running characteristics. The resilient outer polymer casing absorbs micro-irregularities in the track surface, preventing high-frequency acoustic transmission into the building structure. However, in heavy industrial settings, exterior agricultural facilities, or large automated cold-storage portals, high-load capabilities become the dominant engineering criteria. In these demanding environments, utilizing a rugged top hanging sliding door roller wheel with heavy-duty galvanized steel construction ensures structural integrity, high shear strength, and superior resistance to environmental humidity.

European design trends heavily influence contemporary top hanging door roller innovations, particularly regarding integrated adjustability and self-lubricating bearing architectures. International buyers consistently favor hanging door roller hardware featuring enclosed precision ball bearings filled with synthetic lithium complex lubricants rated for wide temperature spectrums (-20°C to +120°C). Furthermore, articulated four-wheel carriage designs have gained significant traction because they pivot internally, maintaining equal contact pressure on all four wheels even if the overhead track exhibits minor longitudinal twisting or vertical waviness.

1. Heavy Duty Galvanized Steel Rollers: Engineered for maximum dynamic load bearing, high tensile impact resistance, and long-term protection against atmospheric moisture.

2. Precision Nylon-Coated Rollers: Designed for acoustic isolation in noise-sensitive environments like commercial offices, healthcare facilities, and hotels.

3. Stainless Steel Marine-Grade Rollers: Specially manufactured with 304 or 316 grade alloys to resist chemical washdowns and coastal saltwater spray.

4. Articulated Multi-Bearing Trolleys: Built with flexible center pivot pins to equalize wheel loading across uneven track sections and eliminate point-load stress concentrations.

Working Principle of Articulated Hangers: Multi-wheel articulated hanging door roller carriages use a center equalizer pin that allows the wheel housing to pivot +/- 5 degrees relative to the door bracket. This self-leveling movement distributes panel weight equally across all four bearing surfaces, preventing premature edge wear on individual roller treads when traveling through curved or slightly misaligned track sections.

What extra roller sets don't fix

Adding extra roller sets cannot remedy underlying structural deficiencies such as overhead track sagging, unanchored mounting headers, wall stud rotational twist, or severe foundation settling.

A common misconception among facility maintenance personnel is that adding extra top hanging door roller hardware will automatically resolve all sliding door operational issues. While secondary rollers successfully resolve localized weight overload and wheel wear, they cannot compensate for systemic mechanical faults in the surrounding building frame or track support structure. If an overhead track experiences vertical beam deflection due to inadequate moment of inertia under load, adding another top hanging door roller merely shifts the point of binding without correcting the curved path of travel. In fact, adding extra rollers to a sagged track often exacerbates friction because multiple hangers are forced to navigate conflicting slope angles along the bowed track profile.

Similarly, structural anchor shear failures and header twisting cannot be rectified by hardware additions. When a heavy industrial door panel causes the overhead timber or steel header to rotate forward, the top hanging door roller path becomes canted out of plumb. This angular misalignment causes the wheel flanges to grind against the vertical walls of the track channel, generating heavy metallic drag, metal shaving accumulation, and premature bearing failure. In such scenarios, technicians must first reinforce the structural mounting header, re-plumb the support brackets, and confirm track straightness before evaluating top hanging door roller performance.

Furthermore, floor guide misalignment and lower panel interference are frequently misdiagnosed as upper roller failures. If the bottom channel or pin guide is installed off the panel centerline, it creates a constant lateral vector force pushing the door outward. This force pushes the upper top hanging door roller assemblies sideways against the track lip, creating severe lateral friction that no amount of extra roller capacity can overcome. Correct diagnostic procedure requires disengaging the bottom guide to isolate whether motion resistance originates from the upper hanging door roller hardware or lower floor level obstructions.

1. Track Surface Deformity: Physical dents, bent channel lips, or internal weld splatter inside the track profile will destroy new roller wheels immediately.

2. Out-of-Level Header Installation: A track mounted at an angle causes gravity-induced drifting that requires structural re-leveling rather than extra hardware.

3. Structural Building Settlement: Foundation shifts that twist the portal frame require structural shimming and portal squaring prior to hardware re-calibration.

4. Inadequate Dynamic Clearance: Insufficient air gap between the door panel bottom and floor surface creates drag that cannot be solved by overhead roller adjustments.

Not sure if extra rollers solve your problem?

Determining whether extra rollers will resolve your operational issues requires conducting a systematic three-step diagnostic evaluation covering load distribution, track plumbness, and component wear analysis.

When experiencing erratic sliding door movement, maintenance teams must follow a structured engineering diagnostic approach to isolate the root failure mechanism before investing in replacement hardware. Step one involves conducting a dynamic force test using a pull force gauge attached to the door handle. A healthy sliding door system equipped with a high-efficiency top hanging door roller assembly should require a starting force of less than 2.5 percent of total panel weight, and a sustained rolling force of under 1.5 percent. If pulling force exceeds these baseline parameters, inspect the top hanging door roller bearings for race rust, seal breakdown, or debris packing.

Step two requires evaluating the geometric alignment of the overhead track profile using a digital laser level and dial indicators. Check the track along its entire length for vertical sag, horizontal deviation, and bracket twist. If track geometry is verified straight within +/- 1.0 mm across the entire portal width, but the door panel continues to shudder or jump during travel, the failure is localized within the top hanging door roller assembly itself. At this stage, replacing the existing units with a premium galvanized steel top hanging sliding door roller wheel assembly will immediately restore low-friction linear glide and operational safety.

Finally, inspect component wear patterns on the existing hardware. Look for asymmetrical tread wear on the roller wheels, which indicates that the hanger mounting plate is tilted relative to the door panel top edge. Check vertical adjustment stud threads for stripping or binding. Industrial end users and European commercial clients prioritize standardized, modular hanging door roller replacement sets that offer drop-in compatibility with established box track profiles. Upgrading to high-capacity roller sets ensures long-term operational reliability, reduces overall facility maintenance overhead, and maintains optimal safety margins for heavy sliding door installations.

1. Isolate the Door Panel: Elevate the panel slightly using lever jacks to determine if motion resistance disappears when roller loading is relieved.

2. Inspect Bearing Smoothness: Rotate each top hanging door roller wheel by hand, feeling for rough spots, axial wobble, or dry grinding sensations.

3. Check Fastener Torque: Verify that all hanger mounting bolts, track bracket anchors, and stop bumpers are torqued to manufacturer specifications.

4. Match Load Specifications: Compare actual panel weight against manufacturer ratings to ensure existing top hanging door roller hardware is not operating in an overloaded condition.

Diagnostic Tip for Facility Engineers: Always perform diagnostic force tests before and after applying track lubrication. If applying dry silicone spray to the track interior reduces pulling force by more than 50 percent, the primary issue is surface contamination or track corrosion rather than top hanging door roller bearing failure.

Conclusion

Maintaining optimal functionality in commercial, industrial, and architectural sliding door systems requires a thorough understanding of top hanging door roller load dynamics, wear indicators, and structural alignment parameters. Adding extra roller sets is the definitive engineering solution when introducing additional door leaves for multi-panel bypass configurations or when dynamic weight limits demand enhanced load distribution. Similarly, replacing compromised rollers becomes mandatory when polymer flat-spotting, bearing degradation, or wheel surface scoring causes high friction, vibration, and operational noise.

However, extra hanging door roller hardware cannot compensate for structural track deflections, unplumb mounting headers, or floor guide misalignments. By executing a systematic diagnostic assessment—evaluating pulling force, inspecting wheel concentricity, and checking track levelness—facility managers and project engineers can correctly identify whether hardware replacement or structural remediation is required. Specifying high-performance components, such as heavy-duty galvanized steel top hanging door roller wheels equipped with sealed precision bearings, guarantees smooth linear movement, long service life, and maximum operational safety across all sliding door applications.
