Sliding Gate Track: Ensuring Smooth Gate Travel

Table of Contents

• H2 | The Role of Sliding Gate Tracks in Smooth Operation

• H2 | Types of Sliding Gate Tracks and Their Applications

• H2 | Best Practices for Sliding Gate Track Installation

• H2 | Maintaining and Troubleshooting Your Gate Track

The Role of Sliding Gate Tracks in Smooth Operation

The primary mechanical function of a sliding gate track is to provide a rigid, low-friction linear guide system that supports total gate weight while maintaining precise direction of travel during movement cycles.

A high-performance sliding gate track operates as the foundational base for linear entrance automation. By transferring vertical gravitational mass directly into a concrete footing, the sliding gate track minimizes internal torsional stress on the leaf frame. When combined with precision-machined roller wheels, a quality sliding gate track absorbs operational vibration, mitigates structural sagging, and stabilizes dynamic load shifts caused by environmental wind pressure. Proper specification of a sliding gate track guarantees that motor drive units operate within designed torque parameters, thereby expanding overall system longevity.

Industrial access control relies heavily on structural integrity and material durability. Utilizing a high-grade heavy duty galvanized sliding gate track ensures superior corrosion resistance, long-term alignment retention, and seamless integration with heavy automated operator systems. Choosing the correct profile depth, wall thickness, and galvanization standard guarantees that the sliding gate track can endure continuous high-frequency operational cycles without suffering plastic deformation or surface pitting.

Beyond structural load transfer, the interaction between the sliding gate track and the underlying civil engineering foundation dictates overall gate performance. Minor track deviations, sub-grade shifting, or inadequate fastener anchoring can introduce localized friction spikes, leading to motor overload, noisy operation, and accelerated wheel bearing failure. Therefore, comprehensive track design requires careful consideration of mechanical load factors, environmental exposure levels, and physical hardware pairing.

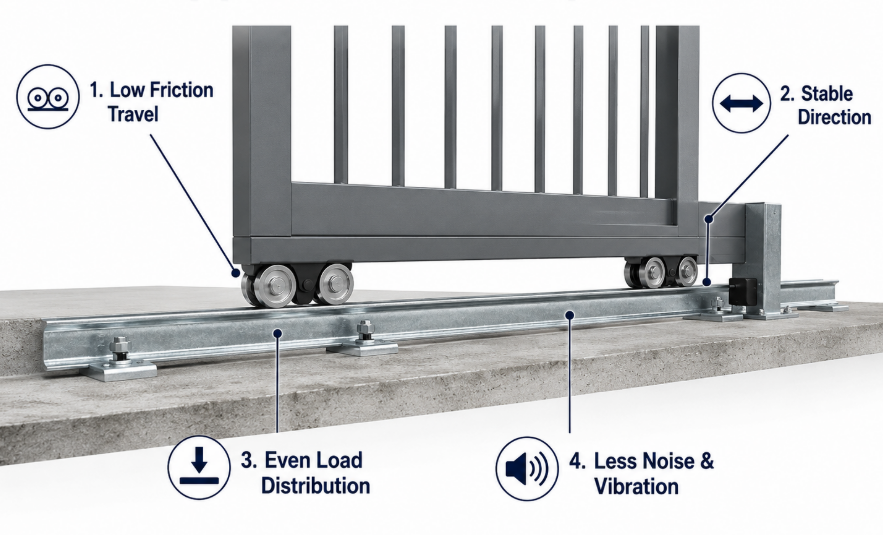

How Tracks Influence Gate Movement

The mechanical efficiency of gate travel is directly governed by the physical contact interface between the sliding gate track profile and the roller wheel groove geometry. When a sliding gate track features exact dimensional tolerances, the wheel maintains a continuous, single-point or line-contact surface. This continuous contact minimizes rolling resistance and prevents transverse play or derailment risk.

1. Rolling Friction Reduction: A uniform, unyielding sliding gate track surface prevents wheel sinkage and reduces motor torque consumption by up to 40% during startup cycles.

2. Directional Stability: The sliding gate track acts as a mechanical guide, eliminating lateral sway and protecting top guide rollers from excessive side-load stress.

3. Dynamic Mass Distribution: As the gate traverses, the sliding gate track evenly distributes point loads across the full length of the concrete pad, preventing localized sub-grade cracking.

4. Noise and Vibration Damping: Precision alignment along the sliding gate track eliminates mechanical chatter and wheel bouncing during high-speed automated open and close sequences.

Key Components of an Effective Track System

A complete sliding gate track assembly consists of specialized structural elements designed to withstand wear, weather exposure, and impact forces. The table below outlines the core hardware components essential for achieving smooth gate travel.

Working Principle of Track Alignment: The sliding gate track operates on linear friction transfer principles. Precise horizontal leveling ensures that gravitational vectors act perpendicular to the ground rail surface, eliminating unwanted lateral forces against motor drive pinions and top guide assemblies.

Types of Sliding Gate Tracks and Their Applications

Selecting the correct sliding gate track type depends on total gate mass, site ground conditions, clear opening width, and anticipated daily operational duty cycles.

Sliding gate track designs cater to distinct civil and industrial installation environments. Standard inverted angle and round V-groove sliding gate track configurations remain popular for residential and light commercial sites due to straightforward installation procedures and cost efficiency. Conversely, heavy-duty embedded sliding gate track systems cater to high-tonnage industrial facility perimeter gates, where axle loading from truck traffic requires reinforced ground embedment. Cantilever track systems eliminate ground-mounted tracks entirely, making them suitable for uneven terrain or locations prone to debris accumulation.

When selecting structural hardware for harsh ambient conditions or salt-spray coastal environments, specifying a high-performance corrosion resistant galvanized sliding gate rail system guarantees structural longevity and prevents premature structural degradation. The continuous hot-dip zinc coating seals the base carbon steel against moisture, aggressive chemical runoff, and mechanical wear caused by grit abrasion during roller travel.

To maximize system reliability, engineers must match the sliding gate track profile with wheel geometry. Mismatched track profiles create point-loading conditions, accelerating surface grooving and leading to jerky movement. Evaluating application parameters early in the access control design process ensures smooth gate travel and minimizes long-term maintenance costs.

Standard Roller Tracks for Residential Use

Residential sliding gate track setups prioritize sleek aesthetics, minimal ground obstruction, and low noise generation during operation. Standard round (O-groove) or V-groove tracks elevated slightly above driveways provide reliable guidance for gates weighing up to 500 kilograms.

1. Inverted V-Track Profile: Surface-mounted angle iron or cold-rolled steel rails that allow water and small particles to shed off naturally.

2. Round O-Track Profile: Smooth, rounded surface rail that reduces wear on rubber-coated or specialized alloy roller wheels, ensuring smooth, silent gate travel.

3. Bolt-Down Installation: Easy surface attachment directly onto existing concrete driveways using countersunk concrete fasteners.

Heavy-Duty Tracks for Commercial Security

Commercial facilities, logistics hubs, and industrial plants require heavy-duty sliding gate track configurations capable of supporting gate leaves exceeding 2,000 kilograms with high duty cycles.

1. Flanged Concrete Embedded Rail: A robust sliding gate track profile designed to be poured directly into slurry concrete, sitting flush with the road surface to withstand heavy vehicle drive-over loads.

2. Dual-Wheel Parallel Tracks: Twin sliding gate track setups that distribute massive structural gate weights across multiple parallel rails, preventing foundation deflection.

3. Hardened Alloy Steel Tracks: Precision-treated sliding gate track options engineered to resist surface deformation, metal fatigue, and high shear forces.

Cantilever Systems for Space Efficiency

Cantilever gate configurations operate without an exposed sliding gate track across the driveway opening. Instead, the sliding gate track is integrated into the bottom frame of the gate leaf and glides over stationary roller carriages anchored off to the side.

Maintenance Consideration for Cantilever Tracks: Cantilever bottom sliding gate track channels must be inspected internally using optical cameras or bore gauges to verify that internal carriage bearings maintain uniform contact without internal tracking wear or dust buildup.

Best Practices for Sliding Gate Track Installation

Flawless sliding gate track installation requires a reinforced concrete foundation, laser-guided level alignment, and precision mechanical anchoring to guarantee smooth gate travel.

Installing a durable sliding gate track begins with thorough civil preparation. A continuous concrete foundation pad must extend beyond the full length of the gate's open and closed travel path. The concrete beam must be engineered below local frost lines to prevent heave, which can distort the sliding gate track and create structural binding. Using laser levels during anchor bolt setting ensures the sliding gate track remains flat within a +/- 1 millimeter tolerance across a 10-meter span.

Integrating linear drive hardware with the sliding gate track requires precise mechanical synchronization. Utilizing a robust galvanized sliding gate rail hardware kit ensures that anchor plates, mounting brackets, ground tracks, and alignment shims share consistent material chemistry and structural load limits. This prevents galvanic corrosion and mechanical play between disparate installation components.

Following concrete curing, installer technicians must verify track straightness before final torque application. A warped or bowed sliding gate track forces automated gate operators to consume excess amperage, triggering false obstruction detection sensors and causing premature motor shutdown. Diligent installation standards protect both the gate operator and structural components.

Site Preparation and Foundation Requirements

A stable concrete trench pad serves as the foundational spine for any surface-mounted sliding gate track. Foundation failure will directly compromise track alignment and cause mechanical binding.

1. Excavation Depth: Dig foundation trenches below local frost lines (typically 400mm to 800mm deep) to prevent ground heave during freeze-thaw cycles.

2. Steel Rebar Reinforcement: Install a rebar cage along the entire trench length to resist bending moments under heavy gate traffic.

3. Concrete Curing Period: Allow concrete to cure for at least 7 to 14 days before drilling anchor expansion holes and securing the sliding gate track.

4. Drainage Gradient: Incorporate subtle cross-slopes away from the sliding gate track to prevent standing water accumulation around concrete fasteners.

Proper Alignment Techniques

Achieving perfect straightness and true horizontal level during sliding gate track placement is mandatory for automated operation. The step-by-step alignment methodology includes:

Integrating Motors and Automatic Openers

Automated sliding gate motors must be mounted parallel to the installed sliding gate track to ensure clean gear rack engagement. Misalignment between the rack and motor drive pinion leads to stripped gear teeth, elevated motor noise, and operational stalls.

1. Rack Pinion Clearance: Maintain a uniform 1.5mm to 2.0mm clearance gap between the motor drive pinion and the gear rack attached to the gate leaf to prevent gate weight from crushing the motor shaft.

2. Parallel Motor Setting: Mount the motor base plate parallel to the sliding gate track line using precision slotted adjustment holes.

3. Limit Switch Positioning: Set magnetic or mechanical limit stops on the sliding gate track ends to smoothly trigger motor deceleration before physical hard stops are reached.

Installation Best Practice Tip: European access control standards favor modular, interlocking sliding gate track sections featuring pre-punched mounting slots. This design allows for fine linear expansion adjustments during extreme summer-to-winter temperature swings without buckling the track.

Maintaining and Troubleshooting Your Gate Track

A structured maintenance schedule focusing on regular cleaning, friction inspections, fastener retightening, and immediate debris removal is vital for preserving smooth sliding gate track travel.

Environmental debris poses an ongoing threat to ground-mounted sliding gate track systems. Small rocks, gravel, sand, packed dirt, and ice accumulation inside the track groove act as obstructions that elevate rolling resistance. Left unaddressed, grit increases abrasive wear on roller bearings and wears down the galvanized surface coating, exposing raw steel to oxidation. Implementing a routine maintenance schedule safeguards system reliability and prevents costly emergency repair calls.

When troubleshooting jerky gate movement, technicians should first isolate whether the resistance stems from drive motor failure, damaged wheel bearings, top guide roller binding, or a warped sliding gate track segment. Inspecting the full length of the track under load highlights mechanical pinch points, rail joint gaps, or anchor bolt looseness that require immediate corrective service.

System owners should establish seasonal inspection protocols to catch wear before catastrophic component failure occurs. Simple preventive actions prolong the working life of the entire entrance gate system.

Routine Cleaning and Lubrication

Maintaining a clean sliding gate track profile prevents debris compaction and protects structural galvanization coatings.

1. Debris Sweeping: Clear gravel, twigs, leaves, and dirt from the sliding gate track groove weekly using a stiff-bristled brush or pressure washer.

2. Ice and Snow Management: Apply non-corrosive calcium chloride de-icers during winter months to prevent ice build-up in the sliding gate track channel.

3. Wheel Bearing Lubrication: Apply high-tack synthetic lithium grease to sealed wheel bearings every six months via zerk grease fittings where available.

4. Track Surface Treatment: Keep the running surface of the sliding gate track clean and free from heavy oil accumulations that attract abrasive sand particles.

Addressing Common Wear and Tear Issues

The matrix below summarizes common operational symptoms, root cause diagnoses, and practical corrective actions for maintaining sliding gate track performance.

Safety Inspections and Adjustments

Regular safety evaluations ensure compliance with automated gate safety codes (such as UL 325 and EN 12453) and prevent property damage or personal injury risks.

1. Physical End Stop Verification: Test that physical end stops on the sliding gate track are securely anchored and capable of stopping the gate at full speed if limit switches fail.

2. Fastener Torque Checks: Inspect concrete anchor expansion bolts along the sliding gate track annually using a calibrated torque wrench to ensure structural anchoring.

3. Anti-Derailment Guard Testing: Verify that anti-derailment bracket guards are present above roller wheels to prevent the gate from lifting off its sliding gate track during windstorms or forced entry attempts.

System Safety Maintenance Tip: European access specifications emphasize integrated physical stop buffers mounted directly to the sliding gate track foundation. These stops must feature energy-absorbing elastomeric pads rated for at least 150% of the maximum kinetic impact force generated by the gate at peak speed.

Summary

Specifying, installing, and maintaining a high-performance sliding gate track system is fundamental to achieving reliable, smooth perimeter gate automation. By choosing heavy-duty galvanized track profiles, establishing precise concrete foundations, and maintaining rigorous inspection schedules, property owners can ensure smooth gate travel and maximum operational lifespans across residential, commercial, and heavy industrial applications.
