Working with Sliding Gate Hardware

Core Components of Sliding Systems

Every professional sliding gate installation relies on a synchronized set of hardware including the Sliding Gate Track, specialized gate wheels, guide rollers, and end stoppers to manage heavy loads safely.

The foundation of any sliding system is the Sliding Gate Track. This component provides the defined path for the gate to travel across the driveway or entrance. In industrial settings, this track is typically made from galvanized steel or stainless steel to withstand the constant pressure of heavy vehicles passing over it. The track must be perfectly straight and securely anchored to a concrete foundation to prevent shifting over time.

Beyond the Sliding Gate Track, the gate wheels or rollers are the primary load-bearing elements. These are engineered with sealed bearings to minimize friction and handle the vertical weight of the gate. Depending on the track profile, these wheels are designed with matching grooves to ensure they remain captive on the path even during high-speed automated operation.

Finally, the system is completed by guide rollers and gate stoppers. Guide rollers are positioned at the top of the gate to maintain its vertical alignment and prevent tipping. Gate stoppers are essential safety components installed at both ends of the Sliding Gate Track to provide a physical limit to the gate’s travel, preventing it from derailing or crashing into the support posts.

Types of Sliding Gate Track

Choosing the correct Sliding Gate Track involves evaluating three primary profiles: the V-profile, the U-profile, and the bolt-down flat track, each offering distinct advantages for different ground conditions.

The V-groove Sliding Gate Track is perhaps the most common in heavy industrial applications. It features a raised, angular peak that fits into a matching V-slot in the gate wheels. This design is highly effective because it is self-cleaning; debris and small stones are easily pushed aside by the weight of the gate. This ensures that the Sliding Gate Track remains clear, reducing the risk of the gate jumping off its path during operation.

The U-groove Sliding Gate Track, often called a round-bottom track, is frequently used for lighter commercial or residential gates but is also found in specific industrial settings where a smoother, quieter operation is required. Because the contact point between the wheel and the Sliding Gate Track is curved rather than angular, there is less vibration. However, this type requires more frequent cleaning as the rounded channel can collect dirt more easily than a V-profile.

Inverted or recessed Sliding Gate Track options are utilized in areas where a flush finish is required for forklift or heavy truck traffic. By embedding the Sliding Gate Track into the concrete, the risk of damage to vehicle tires is minimized. This installation requires advanced drainage planning to ensure water does not collect within the track channel, which could lead to corrosion or freezing in colder climates.

Comparative Analysis of Track Profiles

• V-Groove Track

  1. Excellent for heavy industrial gates.

  2. High tolerance for surface debris.

  3. Requires matching V-groove power wheels.

• U-Groove Track

  1. Quieter operational sound profile.

  2. Ideal for lighter architectural gates.

  3. Requires circular-bottom wheels.

• Recessed Track

  1. Best for heavy vehicle crossing zones.

  2. Minimizes trip hazards for pedestrians.

  3. Requires specialized drainage installation.

Industrial Applications and Benefits

Sliding gate hardware is essential for large-scale facilities where space optimization and high-frequency perimeter access are the primary operational requirements.

The most significant benefit of using a Sliding Gate Track system is the conservation of space. Unlike swing gates, which require a large radial arc to open, a sliding gate moves parallel to the fence line. This allows facilities to utilize the space immediately behind the gate for parking, storage, or staging, which is critical in high-density logistics centers or urban warehouses.

Furthermore, a well-installed Sliding Gate Track provides superior security. Because the gate is anchored at multiple points along the track and through the guide rollers, it is much harder to force open compared to a swing gate. This structural integrity makes it the preferred choice for data centers, chemical plants, and high-value manufacturing sites where unauthorized entry must be strictly prevented.

The reliability of modern Sliding Gate Track systems also translates to lower long-term costs for businesses. High-quality galvanized steel hardware resists rust and mechanical wear, meaning the system can handle hundreds of cycles per day without significant degradation. When paired with a professional-grade motor, the Sliding Gate Track allows for seamless integration with access control systems like RFID readers or license plate recognition.

Key Applications for Sliding Gates

1. Logistics and Distribution Centers: Managing the flow of heavy trucks without occupying driveway space.

2. Commercial Office Parks: Providing sleek, automated entry for employees and visitors.

3. Industrial Manufacturing Plants: Securing perimeters while allowing wide clear-opening widths for oversized machinery.

4. Public Infrastructure: Used in airports and train depots for robust, automated perimeter protection.

Selection Criteria for Hardware

To select the right Sliding Gate Track and associated hardware, engineers must calculate the total gate weight, cycle frequency, and the specific environmental challenges of the installation site.

Weight capacity is the first and most critical parameter. A Sliding Gate Track designed for a light residential gate will fail under the pressure of a multi-ton industrial steel gate. You must ensure the weight-bearing rating of the wheels and the thickness of the Sliding Gate Track exceed the actual gate weight by at least 20 percent to account for dynamic forces during starting and stopping.

Material selection is equally important for the longevity of the Sliding Gate Track. In coastal regions or chemical processing areas, 304 or 316-grade stainless steel is recommended to prevent salt or chemical corrosion. For most standard industrial settings, hot-dipped galvanized steel offers an excellent balance of strength and cost-effectiveness, providing a protective zinc layer that prevents the Sliding Gate Track from rusting.

Finally, consider the wheel diameter and bearing type. Larger wheels distribute the weight over a greater surface area of the Sliding Gate Track, which reduces wear on both components. High-precision ball bearings that are permanently lubricated and sealed are essential for minimizing maintenance requirements and ensuring that the gate moves with minimal resistance, which also protects the life of the gate motor.

Technical Specification Checklist

• Load Rating: Match hardware to the total weight of the gate leaf.

• Material Grade: Galvanized steel for general use; stainless steel for corrosive environments.

• Track Length: Ensure the Sliding Gate Track is twice the length of the gate opening plus an allowance for the motor.

• Bearing Quality: Sealed, high-performance bearings are mandatory for industrial duty cycles.

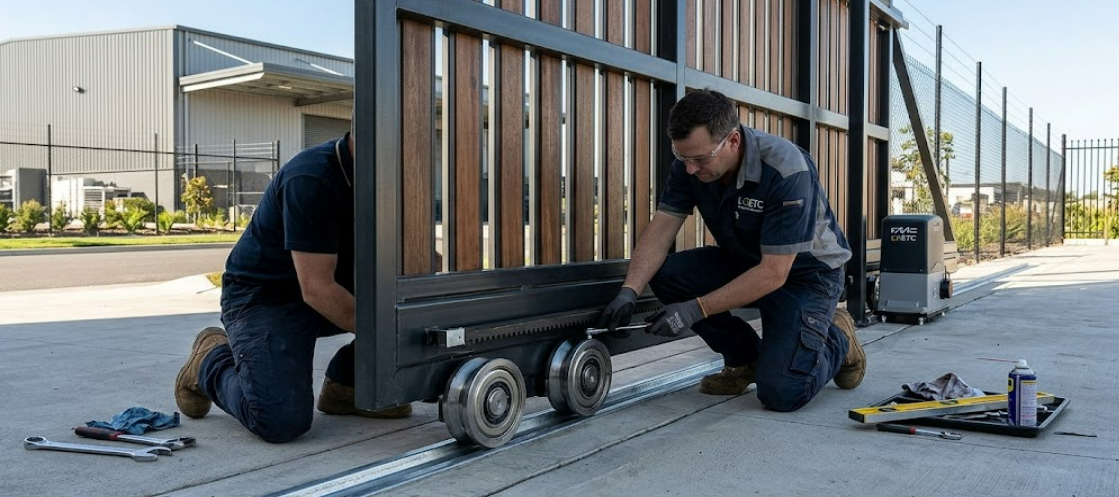

Installation and Alignment Guide

The performance of a sliding gate is entirely dependent on the precision of the Sliding Gate Track installation, which must be perfectly level and structurally reinforced.

The installation process begins with the excavation of a trench for the concrete ground beam. This beam must be deep enough to reach below the frost line and wide enough to support the Sliding Gate Track and the gate’s motor. Reinforcement bars are typically used within the concrete to ensure the beam does not crack or shift under the weight of passing vehicles, which would cause the Sliding Gate Track to become misaligned.

Once the concrete is poured, the Sliding Gate Track is leveled using a transit or laser level. Even a slight deviation in the level of the Sliding Gate Track can lead to significant problems, such as the gate rolling on its own due to gravity or the motor straining to push the gate uphill. The track is usually bolted down using expansion anchors or welded to pre-set steel plates within the concrete for maximum stability.

After the Sliding Gate Track is secured, the gate leaf is placed onto the path. The guide rollers at the top must be adjusted so that the gate remains perfectly vertical throughout its entire travel distance. If the gate leans, it will create uneven friction on the Sliding Gate Track and the rollers, leading to premature failure of the hardware. The final step is installing the physical end stoppers to ensure the gate cannot over-travel the Sliding Gate Track.

Best Practices for Installation

1. Foundation Preparation: Use a high-strength concrete mix for the ground beam.

2. Precision Leveling: Always use a laser level to ensure the Sliding Gate Track is flat across the entire span.

3. Expansion Gaps: If joining multiple lengths of Sliding Gate Track, ensure the joints are smooth and properly aligned to prevent wheel bumping.

4. Security Anchoring: Use heavy-duty masonry anchors every 300mm to 500mm along the track.

Maintenance for Longevity

Routine maintenance of the Sliding Gate Track and its moving parts is the only way to prevent mechanical failure and ensure the safety of the automated entry system.

The primary enemy of a Sliding Gate Track is debris accumulation. Stones, mud, and leaves can build up in or around the track, creating obstacles that force the gate motor to work harder. In some cases, significant debris can cause the gate to derail. A simple weekly inspection and cleaning of the Sliding Gate Track with a broom or pressurized air can prevent the majority of operational issues in industrial environments.

Lubrication is another vital aspect of maintaining sliding gate hardware. While many high-end gate wheels feature sealed bearings that do not require internal lubrication, the external pivot points of guide rollers and the teeth of the drive rack should be checked. It is important to use a dry lubricant on the Sliding Gate Track if necessary, as wet greases can actually attract dirt and grit, which acts as an abrasive paste that wears down the hardware faster.

Finally, regular structural checks are necessary to ensure the Sliding Gate Track remains securely fastened. Over time, the vibration from heavy traffic can loosen anchor bolts. Maintenance teams should periodically check the tightness of all fasteners and inspect the Sliding Gate Track for any signs of bending or uneven wear. Addressing these small issues early prevents the need for expensive repairs or complete replacement of the gate system.

Suggested Maintenance Schedule

Optimizing Your Sliding Gate System

Investing in professional-grade sliding gate hardware is an investment in the security and efficiency of your facility. By selecting a high-quality Sliding Gate Track and matching it with precision-engineered rollers, you create a system that can withstand the rigors of industrial use for decades.

The key to success lies in the details: choosing the right track profile for your traffic type, ensuring a surgical level of precision during the installation of the Sliding Gate Track, and committing to a proactive maintenance routine. When these elements come together, the result is a seamless access control solution that enhances the safety and professional appearance of any commercial or industrial site.

Whether you are upgrading an existing entrance or designing a new facility from the ground up, prioritizing the integrity of your Sliding Gate Track and hardware components will yield the best return on investment. Robust hardware not only reduces downtime but also ensures that your automated systems function safely and reliably every day.
